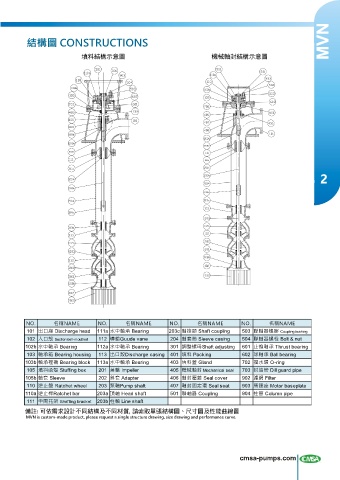

結構圖 CONSTRUCTIONS MVN
2
NO. 名稱NAME NO. 名稱NAME NO. 名稱NAME NO. 名稱NAME
101 出口座 Discharge head 111a 水中軸承 Bearing 203c 軸接頭 Shaft coupling 503 聯軸器橡膠 Coupling bushing
102 入口殼 Suction bell-mouthed 112 導輪Guude vane 204 軸套筒 Sleeve casing 504 聯軸器螺栓 Bolt & nut
102b 水中軸承 Bearing 112a 水中軸承 Bearing 301 調整螺母Shaft adjusting 601 止推軸承 Thrust bearing
103 軸承箱 Bearing housing 113 出口殼Discharge casing 401 填料 Packing 602 球軸承 Ball bearing
103b 軸承裡襯 Bearing block 113a 水中軸承 Bearing 403 填料蓋 Gland 702 擋水環 O-ring
105 填料函殼 Stuffing box 201 葉輪 Impeller 405 機械軸封 Mechanical seal 703 封油管 Dill guard pipe
105b 軸套 Sleeve 202 斜套 Adapter 406 軸封壓蓋 Seal cover 902 濾網 Filter
110 逆止盤 Ratchet wheel 203 泵軸Pump shaft 407 軸封固定環 Seal seat 903 馬達座 Motor baseplate
110a 逆止桿Ratchet bar 203a 頂軸 Head shaft 501 聯軸器 Coupling 904 柱管 Column pipe
111 中間托架 Shafting bracket 203b 柱軸 Line shaft
MVN is custom-made product, please request a single structure drawing, size drawing and performance curve.
