CVS

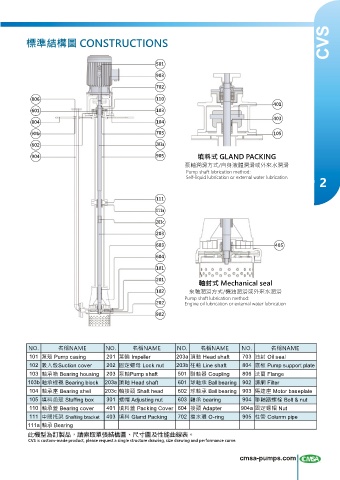

標準結構圖 CONSTRUCTIONS
501
903
702
806 110
401
601 103
403
804 104
904a 703 105
602 203a
904 905 填料式 GLAND PACKING
泵軸潤滑方式/自身液體潤滑或外來水潤滑
Pump shaft lubrication method:
Self-liquid lubrication or external water lubrication
2
111
111a
203c
203
603 405
604
101
201
軸封式 Mechanical seal
102 泵軸潤滑方式/機油潤滑或外來水潤滑
Pump shaft lubrication method:
202 Engine oil lubrication or external water lubrication
902
NO. 名稱NAME NO. 名稱NAME NO. 名稱NAME NO. 名稱NAME
101 泵殼 Pump casing 201 葉輪 Impeller 203a 頂軸 Head shaft 703 油封 Oil seal
102 吸入殼Suction cover 202 固定螺母 Lock nut 203b 柱軸 Line shaft 804 底板 Pump support plate
103 軸承箱 Bearing housing 203 泵軸Pump shaft 501 聯軸器 Coupling 806 法蘭 Flange
103b 軸承裡襯 Bearing block 203a 頂軸 Head shaft 601 球軸承 Ball bearing 902 濾網 Filter
104 軸承座 Bearing shell 203c 軸接頭 Shaft head 602 球軸承 Ball bearing 903 馬達座 Motor baseplate
105 填料函殼 Stuffing box 301 螺帽 Adjusting nut 603 軸承 bearing 904 聯軸器螺栓 Bolt & nut
110 軸承蓋 Bearing cover 401 填料蓋 Packing Cover 604 接頭 Adapter 904a 固定螺帽 Nut
111 中間托架 Shafting bracket 403 填料 Gland Packing 702 擋水環 O-ring 905 柱管 Column pipe
111a 軸承 Bearing
CVS is custom-made product, please request a single structure drawing, size drawing and performance curve.
