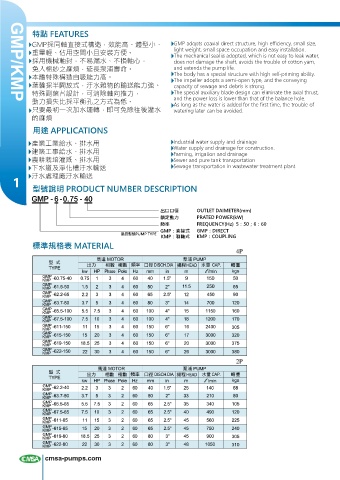

Page 2 - GMP _KMP-自吸式泵浦-20220221

特點 FEATURES

GMP採同軸直接式構造，效能高、體型小、 GMP adopts coaxial direct structure, high efficiency, small size,
重量輕、佔用空間小且安裝方便。 light weight, small space occupation and easy installation.
The mechanical seal is adopted, which is not easy to leak water,
採用機械軸封，不易漏水、不損軸心， does not damage the shaft, avoids the trouble of cotton yarn,
免入棉紗之麻煩，延長泵浦壽命。 and extends the pump life.
本體特殊構造自吸能力高。 The body has a special structure with high self-priming ability.
The impeller adopts a semi-open type, and the conveying
葉輪採半開放式，汙水雜物的輸送能力強。 capacity of sewage and debris is strong.
特殊副葉片設計，可消除軸向推力， The special auxiliary blade design can eliminate the axial thrust,
動力損失比採平衡孔之方式為低。 and the power loss is lower than that of the balance hole.
GMP/KMP
As long as the water is added for the first time, the trouble of
只要最初一次加水運轉，即可免除往後灌水 watering later can be avoided.
的麻煩
用途 APPLICATIONS

產業工業給水、排水用 Industrial water supply and drainage
Water supply and drainage for construction.
建築工事給水、排水用 Farming, irrigation and drainage
農耕栽培灌溉、排水用 Sewer and pure tank transportation
下水道及淨化槽汙水輸送 Sewage transportation in wastewater treatment plant
1 汙水處理廠汙水輸送

型號說明 PRODUCT NUMBER DESCRIPTION

出口口徑 OUTLET DAIMETER(mm)
額定動力 PRATED POWER(kW)
頻率 FREQUENCY(Hz) 5：50；6：60
GMP：直接式 GMP：DIRECT
產品型號PUMP TYPE
KMP：聯軸式 KMP：COUPLING
標準規格表 MATERIAL
