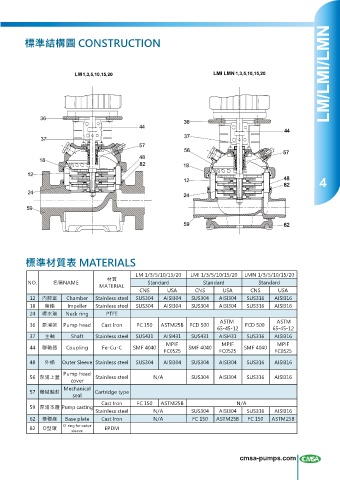

Page 5 - LM-立式多段不銹鋼管道泵浦-20220221
P. 5
LM/LMI/LMN
標準結構圖 CONSTRUCTION
4
標準材質表 MATERIALS
LM 1/3/5/10/15/20 LMI 1/3/5/10/15/20 LMN 1/3/5/10/15/20
材質
NO. 名稱NAME Standard Standard Standard
MATERIAL
CNS USA CNS USA CNS USA
12 內腔室 Chamber Stainless steel SUS304 AISI304 SUS304 AISI304 SUS316 AISI316
18 葉輪 Impeller Stainless steel SUS304 AISI304 SUS304 AISI304 SUS316 AISI316
24 導水環 Neck ring PTFE
ASTM ASTM
36 泵浦架 Pump head Cast Iron FC 150 ASTM25B FCD 500 FCD 500
65-45-12 65-45-12
37 主軸 Shaft Stainless steel SUS431 AISI431 SUS431 AISI431 SUS316 AISI316
MPIF MPIF MPIF
44 聯軸器 Coupling Fe-Cu-C SMF 4040 SMF 4040 SMF 4040
FC0525 FC0525 FC0525
48 外桶 Outer Sleeve Stainless steel SUS304 AISI304 SUS304 AISI304 SUS316 AISI316
Pump head
56 泵浦上蓋 Stainless steel N/A SUS304 AISI304 SUS316 AISI316
cover
Mechanical
57 機械軸封 Cartridge type
seal
Cast Iron FC 150 ASTM25B N/A
59 泵浦本體 Pump casting
Stainless steel N/A SUS304 AISI304 SUS316 AISI316
62 基礎座 Base plate Cast Iron N/A FC 150 ASTM25B FC 150 ASTM25B
82 O型環 O-ring for outer EPDM
sleeve
cmsa-pumps.com
