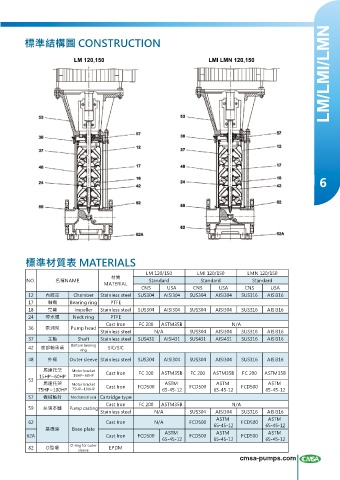

Page 7 - LM-立式多段不銹鋼管道泵浦-20220221

LM/LMI/LMN
標準結構圖 CONSTRUCTION

6

標準材質表 MATERIALS

LM 120/150 LMI 120/150 LMN 120/150
材質
NO. 名稱NAME Standard Standard Standard
MATERIAL
CNS USA CNS USA CNS USA
12 內腔室 Chamber Stainless steel SUS304 AISI304 SUS304 AISI304 SUS316 AISI316
17 軸襯 Bearing ring PTFE
18 葉輪 Impeller Stainless steel SUS304 AISI304 SUS304 AISI304 SUS316 AISI316
24 導水環 Neck ring PTFE
Cast Iron FC 200 ASTM35B N/A
36 泵浦架 Pump head
Stainless steel N/A SUS304 AISI304 SUS316 AISI316
37 主軸 Shaft Stainless steel SUS431 AISI431 SUS431 AISI431 SUS316 AISI316
42 底部軸承環 Bottom bearing SIC/SIC
ring
48 外桶 Outer sleeve Stainless steel SUS304 AISI304 SUS304 AISI304 SUS316 AISI316
馬達托架 Motor bracket
15HP~60HP 15HP~60HP Cast Iron FC 200 ASTM35B FC 200 ASTM35B FC 200 ASTM35B
53
馬達托架 Motor bracket ASTM ASTM ASTM
75HP~100HP 75HP~100HP Cast Iron FCD500 65-45-12 FCD500 65-45-12 FCD500 65-45-12
57 機械軸封 Mechanical seal Cartridge type
Cast Iron FC 200 ASTM35B N/A
59 泵浦本體 Pump casting
Stainless steel N/A SUS304 AISI304 SUS316 AISI316
ASTM ASTM
62 Cast Iron N/A FCD500 65-45-12 FCD500 65-45-12
基礎座 Base plate
62A Cast Iron FCD500 ASTM FCD500 ASTM FCD500 ASTM
65-45-12 65-45-12 65-45-12
82 O型環 O-ring for outer EPDM
sleeve
cmsa-pumps.com
