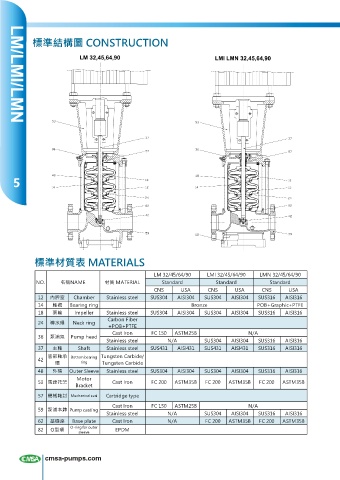

標準結構圖 CONSTRUCTION
LM/LMI/LMN
5
標準材質表 MATERIALS
LM 32/45/64/90 LMI 32/45/64/90 LMN 32/45/64/90
NO. 名稱NAME 材質 MATERIAL Standard Standard Standard
CNS USA CNS USA CNS USA
12 內腔室 Chamber Stainless steel SUS304 AISI304 SUS304 AISI304 SUS316 AISI316
14 軸襯 Bearing ring Bronze POB+Graphic+PTFE
18 葉輪 Impeller Stainless steel SUS304 AISI304 SUS304 AISI304 SUS316 AISI316
Carbon Fiber
24 導水環 Neck ring
+POB+PTFE
Cast Iron FC 150 ASTM25B N/A
36 泵浦架 Pump head
Stainless steel N/A SUS304 AISI304 SUS316 AISI316
37 主軸 Shaft Stainless steel SUS431 AISI431 SUS431 AISI431 SUS316 AISI316
底部軸承 Bottom bearing Tungsten Carbide/
42
環 ring Tungsten Carbide
48 外桶 Outer Sleeve Stainless steel SUS304 AISI304 SUS304 AISI304 SUS316 AISI316
Motor
53 馬達托架 Cast Iron FC 200 ASTM35B FC 200 ASTM35B FC 200 ASTM35B
Bracket
57 機械軸封 Mechanical seal Cartridge type
Cast Iron FC 150 ASTM25B N/A
59 泵浦本體 Pump casting
Stainless steel N/A SUS304 AISI304 SUS316 AISI316
62 基礎座 Base plate Cast Iron N/A FC 200 ASTM35B FC 200 ASTM35B
82 O型環 O-ring for outer EPDM
sleeve
